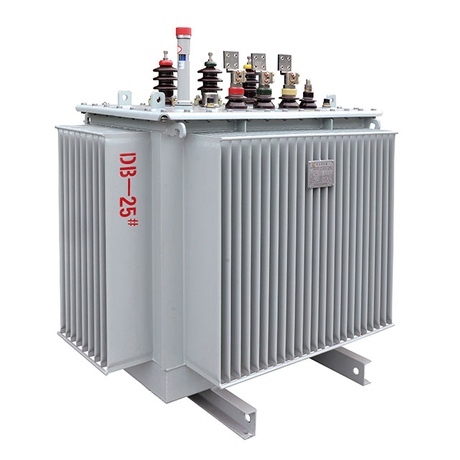

Product overview
Independent development of products , Type/S13 relies on the basis of the original S11 type distribution transformer, through the research of new material, new process by combining and independent innovation and technological introduction ways, through the optimization of iron core and coil structure innovation design, achieve the goal of no-load loss and lower noise.
No-load loss dropped by an average of 37%. Noise level compared with the current national standard JB/T10088-2004 average fell 20%,product performance level has reached the domestic advanced level.
Type | Rated capacity | Connection symbol | Voltage combination | No-load losses（W） | Load losses（W） | No- load current | Short-circuit impedance | |||
H.V | Tapping range | L.V | Dy | Yy | ||||||
S13-M-10 | 10 | Yyn0 Dyn11 | 11 10.5 10 6.3 6 | ±5% ±2×2.5% +3×2.5% -1×2.5% | 0.4 | 40 | 360 | 340 | 2.8 | 4.0 |
S13-M-20 | 20 | 70 | 525 | 500 | 2.5 | |||||
S13-M-30 | 30 | 80 | 630 | 600 | 2.3 | |||||
S13-M-50 | 50 | 100 | 910 | 870 | 2.0 | |||||
S13-M-63 | 63 | 110 | 1090 | 1040 | 1.9 | |||||
S13-M-80 | 80 | 130 | 1310 | 1250 | 1.9 | |||||
S13-M-100 | 100 | 150 | 1580 | 1500 | 1.8 | |||||
S13-M-125 | 125 | 170 | 1890 | 1800 | 1.7 | |||||
S13-M-160 | 160 | 200 | 2310 | 2200 | 1.6 | |||||
S13-M-200 | 200 | 240 | 2730 | 2600 | 1.5 | |||||
S13-M-250 | 250 | 290 | 3200 | 3050 | 1.4 | |||||
S13-M-315 | 315 | 340 | 3830 | 3650 | 1.4 | |||||
S13-M-400 | 400 | 410 | 4520 | 4300 | 1.3 | |||||
S13-M-500 | 500 | 480 | 5410 | 5150 | 1.2 | 4.5 | ||||
S13-M-630 | 630 | 570 | 6200 | 6200 | 1.1 | |||||
S13-M-800 | 800 | 700 | 7500 | 7500 | 1.0 | |||||
S13-M-1000 | 1000 | 830 | 10300 | 10300 | 1.0 | |||||
S13-M-1250 | 1250 | 970 | 12000 | 12000 | 0.9 | |||||
S13-M-1600 | 1600 | 1170 | 14500 | 14500 | 0.8 | |||||
S13-M-2000 | 2000 | 1510 | 17800 | 17800 | 0.8 | According to customer demand | ||||
S13-M-2500 | 2500 | 1780 | 20700 | 20700 | 0.7 | |||||
S13-M-3150 | 3150 | 2100 | 24300 | 24300 | 0.7 | |||||
What is an Oil-Immersed Distribution Transformer?
An oil-immersed distribution transformer is a type of electrical transformer that is designed to be submerged in a bath of insulating oil. This oil-filled transformer is a crucial component in power distribution systems, responsible for stepping down high-voltage electricity from the transmission network to a lower voltage suitable for residential, commercial, and industrial use.
