Place of Origin:
Jiangsu, China
Brand Name:
HUABIAN
Model Number:
Dry transformer distribution transformer
Usage:Power
Phase:three
Coil Structure:TOROIDAL
Design Standard: IEC 60076
Capacity/KVA:100KV
AVoltage/KV: 6-10KV 20-24KV 30-36KV
INSULATIONS:CLASS H/CLASS F
Rated frequency:50Hz/60Hz
Type of cooling:AN/AF
Altitude:<1000m,Available upon request
ambient temperature:-25℃~+40℃
Installation Location：
Installed in places without fire, explosion hazard, serious pollution, chemical corrosion and cluster vibration, indoor or outdoor
Supply Ability:500 Set/Sets per Month
Packaging & Delivery
Packaging Details:Wooden case
Port:QINGDAO,SHANGHAI、LIANYUNGANG

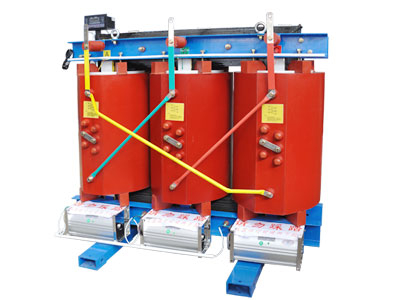

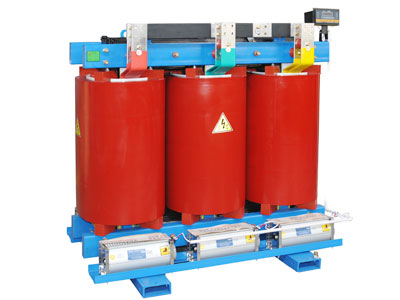

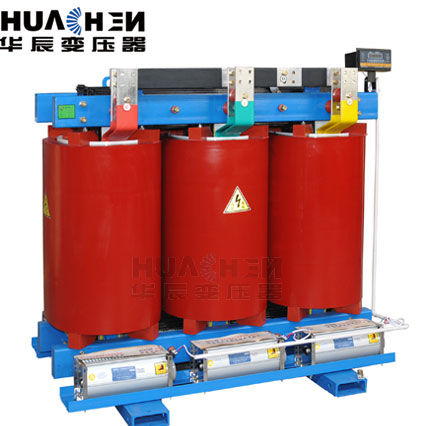

Cast Resin Dry Transformer - MV Series
Maximum Capacity 25MVA, upto 36kv
Application for Commercial, Industrial and residential site
Auto-extinguishing and maintenance free
Customized Service
E2 Environmental Class
C2 Climate Class
F1 Fire Resistance Class
Structure Features
1. The magnetic core has a miter step joint to ensure optimum performance and minimum sound levels by using step lap technology.
2. Windings are cast under vacuum with epoxy resin. Transient analysis tests have been performed to verify the electrical stress distribution.
3. Air-cooling system adopts top-blowing cross flow fan, which has the characteristics of low noise, high wind pressure, beautiful look, etc.
4. Intelligent temperature controller improves the safety and reliability of the transformer.
5. Supply various Enclosure options in IP20, IP23, etc.
Product Advantages
a, Vacuum-Casting
Our product is manufactured with vacuum casting process using a metal pattern, producing a thick resin layer with a smooth surface
b, Partial Discharge Free
Lower partial discharge characteristics.
All units are subjected to partial discharge test
Voltage that is twice that of the operating system is applied to ensure safety
Partial discharge is less than 10 pC
c, Shop Test Items
Routine test
Routine test is a must test for all transformers in our workshop.
Type test (as requested)
Lightning impulse test
Temperature-rise test
Measurement of sound level
Lead Time:
Quantity(sets) | 1 - 1 | 2 - 10 | >10 |
Est. Time(days) | 25 | 35-40 | To be negotiated |
International Commercial Terms(Incoterms):
FOB, CFR, CIF, FAS, DAP, CIP, CPT, FCA, EXW
Terms of Payment:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
